Description

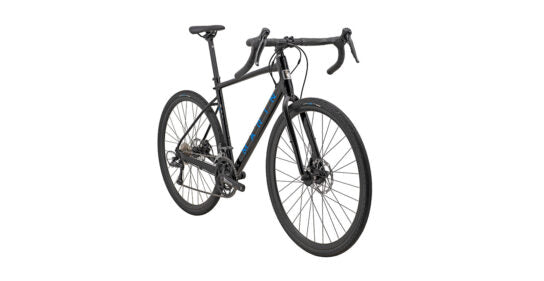

marin gravel bikes Marin Gestalt Base Black Gravel BikeADVENTURE ROAD RIDING LONG DISTANCE COMMUTING ENDURANCE AND ALL WEATHER PAVEMENT The Marin Gestalt takes you Beyond Road. Tarmac and trail, rough roads and muddy commutes, bikepacking, touring and adventure. Daily trips and weekend escapes are all within the Gestalts wheelhouse, with no stopping when the asphalt turns to dirt. Our most affordable Gestalt, weve taken our Series 2 aluminum frame and created a killer value all terrain explorer that wont
ADVENTURE ROAD RIDING
LONG DISTANCE COMMUTING
ENDURANCE AND ALL-WEATHER PAVEMENT
The Marin Gestalt takes you Beyond Road.
Tarmac and trail, rough roads and muddy commutes, bikepacking, touring and adventure. Daily trips and weekend escapes are all within the Gestalt’s wheelhouse, with no stopping when the asphalt turns to dirt.
Our most affordable Gestalt, we’ve taken our Series 2 aluminum frame and created a killer value all-terrain explorer that won’t stretch your budget. Aluminum straight-blade fork, Vee Tire Co tires, Tektro mechanical disc brakes, Shimano Claris 2x8-speed groupset and plenty of quality Marin components all add up to bags of value and heaps of fun.
SPECIFICATIONS
-
FRAME
Series 2 Beyond Road, 6061 Aluminum, 700C Wheels, Relieved Head Tube and BB, Internal Cable Routing, Disc Specific Forged Dropouts w/ Mudguard and Rack Mounts
-
FORK
6061 Aluminum, Straight-Blade, Post-Mount Disc
-
RIMS
Marin Aluminum Double Wall, 19mm Inner, 25mm Tall, Disc Specific
-
HUB, REAR
Forged Aluminum Alloy, 6-Bolt Disc, 32H
-
HUB, FRONT
Forged Aluminum Alloy, 6-Bolt Disc, 32H
-
SPOKE, NIPPLES
14g Black Stainless Steel
-
TIRES
Vee Tire Co., Zilent, 700x35
-
DERAILLEUR, REAR
Shimano Claris 8-Speed
-
DERAILLEUR, FRONT
Shimano Claris
-
SHIFT LEVER
Shimano Claris 2x8-Speed
-
CRANKSET
FSA Tempo Compact, 50/34T
-
BOTTOM BRACKET
Sealed Bearing Square Taper
-
CHAIN
KMC Z8
-
CASSETTE
SunRace 8-Speed, 11-32T
-
BRAKE, FRONT
Tektro MD-C40 Road Mechanical Disc, 160mm Rotor
-
BRAKE, REAR
Tektro MD-C40 Road Mechanical Disc, 160mm Rotor
-
BRAKE LEVERS
Shimano w/ Integrated Shifters
-
HANDLEBAR
Marin Butted Alloy, Compact 12º Flared Drop
-
STEM
Marin 3D Forged Alloy
-
GRIPS
Marin Perforated Tape
-
HEADSET
FSA No.8B
-
SEATPOST
Marin Alloy, 27.2mm
-
SADDLE
Marin Beyond Road Concept
-
PEDALS
Commute Platform
GEOMETRY
| 50 | 52 | 54 | 56 | 58 | 60 | |
|---|---|---|---|---|---|---|
| STACK | 552 | 568 | 582 | 601 | 620 | 641 |
| REACH | 367 | 372 | 377 | 387 | 402 | 404 |
| HEADTUBE ANGLE | 71° | 71.5° | 71.5° | 71.5° | 71.5° | 71.5° |
| HEADTUBE LENGTH | 120 | 135 | 150 | 170 | 190 | 210 |
| SEATTUBE ANGLE | 74.5° | 74° | 73.5° | 73.5° | 73.5° | 73° |
| SEATTUBE LENGTH | 460 | 480 | 500 | 520 | 540 | 560 |
| TOPTUBE EFFECTIVE | 520 | 535 | 550 | 565 | 585 | 600 |
| BB HEIGHT | 276 | 276 | 276 | 276 | 276 | 276 |
| BB DROP | 78 | 78 | 78 | 78 | 78 | 78 |
| CHAINSTAY | 432 | 432 | 432 | 432 | 432 | 432 |
| WHEELBASE | 1008 | 1014 | 1024 | 1040 | 1060 | 1070 |
| STANDOVER HEIGHT | 714 | 732 | 755 | 775 | 794 | 814 |
| FORK OFFSET | 50 | 50 | 50 | 50 | 50 | 50 |
| SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| HANDLEBAR WIDTH | 420 | 420 | 440 | 440 | 460 | 460 |
| STEM LENGTH | 70 | 70 | 90 | 90 | 110 | 110 |
| CRANK LENGTH | 170 | 170 | 175 | 175 | 175 | 175 |
All lengths in millimeters
TECHNOLOGY
SERIES 2 OR 3 FRAME
The Gestalt features a butted and formed Series 2 6061 aluminum frame with internal routing, disc brakes, and rack and fender eyelets. Series 3 frames add thru-axles and a tapered headtube.
BEYOND ROAD GEOMETRY
Beyond Road Geometry offers a blend of endurance road handling with enhanced stability for off pavement use.
DISC BRAKES
Disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.
TIRE CLEARANCE
The Gestalt frame and fork has clearance for up to 700Cx45 tires
